Oil Filled Cable Design Services

Our oil-filled cable design solutions ensure optimal performance and reliability for high-voltage transmission systems. We specialize in:

Pressure & Thermal Analysis

Calculation of oil pressure profiles along cable routes, considering elevation changes, thermal expansion, and transient load conditions. Design of oil feeding systems, reservoirs, and pressure monitoring arrangements to maintain stability.

System Integration

Engineering of joints, terminations, and oil stop joints with compatibility for existing infrastructure. Specification of auxiliary equipment and alarm systems.

Custom Design & Engineering

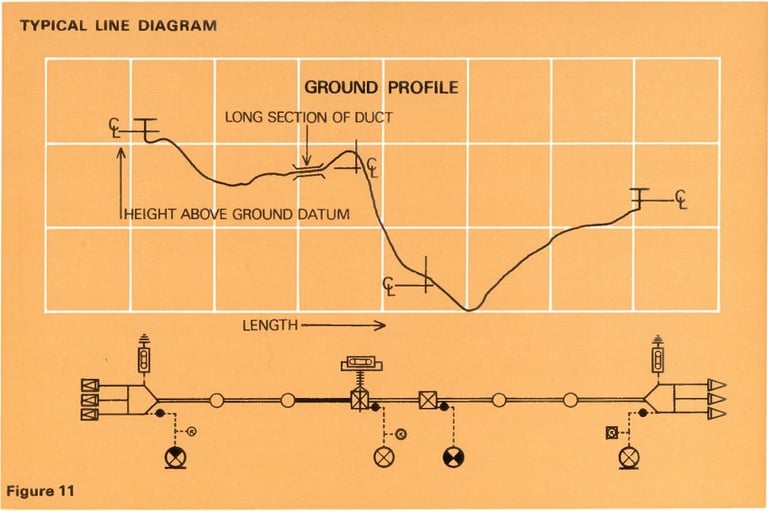

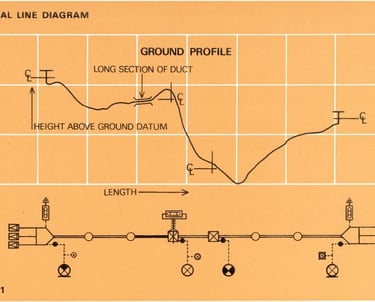

Tailored oil-filled cable systems for your specific voltage and load requirements. Preparation of a preliminary hydraulic system design for an oil-filled cable installation is relatively simple, but selection of the optimum scheme may be a matter of some complexity. Oil tankage requirements are dependent on the nature of the route profile, on ambient temperatures and other system conditions; an indication of the probable tankage needed for various cables is given. The range of tank capacities of 88 litres to 300 litres gives a wide choice, bearing in mind that within practical limitations of size and weight, the larger the oil pressure tank the lower the cost per unit volume capacity. On the other hand it is economically desirable to concentrate the tankage in large units at the fewest possible positions. Con-versely, the designer must ensure that the cable lengths between feed positions are not so great as to engender excessively high or low transient oil pressures at positions remote from the feed points. There is no hard and fast rule about the maximum length of a single hydraulic section but it is seldom that these section lengths exceed 3 km. Similarly, the maximum permissible difference in level in a hydraulic section is not fixed, but in general the maximum economic difference in head is about 30 m to 40 m.

Compliance & Standards

Our oil-filled cable systems often require precise installation planning. Learn more about our Cable Pulling Calculation Services.

Designs aligned with IEC 60141, BS EN standards, and utility-specific requirements for safety, reliability, and environmental considerations.

Whether you need a new installation or an upgrade to existing infrastructure, our expertise guarantees efficient, cost-effective, and robust solutions for critical power networks.

Reliable earthing is critical for oil-filled cable systems. Explore our Earthing Design Services.

For complete integration, see our Substation Design Services.
